Short Comunications

Insulin In The Carotid Sinus Increases Suprahepatic And Arterial Glucose Levels



Mónica Lemus Vidal1
Cadenas Freixas José Luis 2
Héctor R. Tejeda Chávez3
Edgar U. Mejía Chávez3
Julián E. Martínez Sánchez3
Sergio A. Montero Villegas3
Claudia Z. Valle Rubio3
José A. Maturano Melgoza4
Sergio A. Montero Cruz1,3*
Elena Roces Dorronsoro1*

1 Centro Universitario de Investigaciones Biomédicas. La Habana, Cuba.
Universidad de las Ciencias Médicas "Carlos J. Finlay". Camagüey, Cuba.
3 Universidad de Colima, Facultad de Medicina. Colima, México.
4Universidad de Colima, Facultad de Enfermería. Colima, México.

*Authors for correspondence. E-mail: and

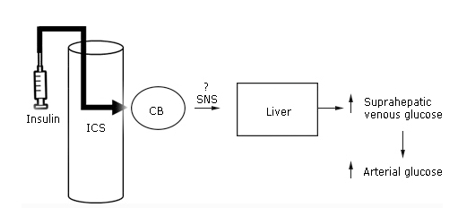

Graphical Abstract

ICS, isolated carotid sinus; CB, carotid body; SNS, sistema nervioso simpático





Objective: Considering that insulin is a clue hormone in glucose homeostasis, the aim of this study was to analyze the effects of this hormone infused into the isolated carotid sinus (ICS), on suprahepatic and arterial glucose levels. Methods: All procedures were carried out in accordance with the United States National Institutes of Health. Ten male Wistar rats 280-300 g anesthetized with sodium pentobarbital (5 mg /100 g i.p.) after 12 h fasting were randomly divided into control and experimental groups. Saline (100µL) or insulin (15 mIU/rat in 100 μL saline) were injected into the ICS. Blood was collected from catheters inserted in the suprahepatic vein (SHV), starting in the jugular vein and into the femoral artery (FA) were placed. Glucose levels were determined at -10 and -5 min before saline or insulin were injected in the ICS; and 1, 5, 10, 20, and 40 min after the above injection. Results:Insulin injection significantly increased glucose levels in the SHV from 128.8 ± 5.2 mg/dL to 207.4 ± 10.6 mg/dL (p = 0.00005), while in the FA they increase from 123.4 ± 6.7 mg/dL to 199.8 ± 9.6 mg/dL (p = 0.0008) at 40 min after insulin injection. Control group with saline did not show significant changes (p = 0.97 in FA) and (p = 0.34 in SHV). The comparison between both groups was significant on arterial (p = 0.007) and venous (p = 0.003) blood glucose levels. Conclusion: As other studies report overactivation of the carotid bodies and sympathetic activity increase after insulin injections in the carotid artery, we assume that insulin in the carotid bodies (CBs)) activates hepatic glycogenolysis to increase blood glucose levels (hyperglycemia).

Keywords: carotid body chemoreceptors; insulin; isolated carotid sinus; glycemia.



The carotid bodies (CBs), located bilaterally in the bifurcation of the common carotid detect changes in pO2, pCO2, pH (Alvarez et al. Buylla, 1951; Eyzaguirre and Zapata, 1984; Pardal, et al., 2007) and glucose (Álvarez-Buylla and Álvarez-Buylla, 1988, Álvarez-Buylla and Roces de Álvarez-Buylla, 1994, Koyama et al., 2000,Pardal and López-Barneo, 2002).The CBs are innervated by the carotid sinus nerve, a descending branch of the glossopharyngeal nerve, which runs from the CBs, passing through the petrosal ganglion,to the tractus solitarius nucleus (NTS) (Finley and Katz, 1992). The CBs are integrated into the brainstem and produce respiratory and cardiovascular reflexes through the adrenal sympathetic pathway (González et al., 1994, Marshall, 1994, Álvarez-Buylla et al., 1997), to activate glycogenolysis (Cao and Morrison, 2001). In recent years it is suggested that CBs are also sensitive to insulin due to the presence of insulin receptors (Ribeiro et al., 2013). Intravenous infusion of insulin triggers the action of CB (Conde et al., 2018) and increases ventilation (Bin-Jaliah et al., 2004); likewise, hypercaloric diets cause overactivation of these organs and induce insulin resistance, hyperinsulinemia and hypertension in rats (Ribeiro et al., 2013). That is to say, that insulin stimulates CBs and produces sympathoadrenal activation with a hyperglycemic response secondary to hepatic gluconeogenesis increase and/or glycogenolysis. In this work, insulin injection was performed in the isolated carotid sinus from the circulation (ICS), to analyze the glycemic levels in the suprahepatic vein (glucose output from the liver) and in the femoral artery in healthy Wistar rats.




All procedures were performed on male Wistar rats with strict adherence to the Guide for the Care and Use of Laboratory Animals. The experiments were carried out in rats of 280-300 g of body weight (n = 10). The rats were housed individually in light-dark conditions 12h /12h, and temperature of 22-24 °C, with water and food (Teklad Global Diet) at free demand. Two groups were randomly conformed: a) control, with saline injection into the ICS (n = 5), and b) experimental, with insulin injection into the ICS (n = 5). The rats were anesthetized with sodium pentobarbital (3 mg/100 g, i.p., Anestesal, Pfizer, Mexico), the level of anesthesia was kept constant throughout the experiment (0.063 mg/min, i.p.). Before the surgical procedure, buprenorphine was injected for analgesia (0.03 mg/kg, i.m., Temgesic, Schering-Plow, Mexico).

Rats were kept under artificial respiration with a small species respirator (Stoelting-Ugo Basile, Italy) connected to an endotracheal tube.To catheterize the SH vein, the right external jugular vein was dissected and catheterized through a silastic tube (Dow Corning 602-155) to the inferior cava vein, at the exit of the suprahepatic vein, in order to collect the blood that drains from the liver to determine the concentrations of glucose that leaves this organ. To catheterize the abdominal aorta, an incision was made in the inguinal fold, superior and medial to the right, once visualized the vasculo-nervous bundle, the femoral artery was dissected to introduce a polyethylene tube PE- 10 (Clay Adams, Division of Becton, Dickinson & Co., Parsippany, NJ, USA) until reaching the abdominal aorta (1 cm below the renal arteries). All catheterizations were made with heparinized cannulas (500 U/mL). Saline or insulin injections were made into the ICS following the technique of Álvarez-Buylla and Álvarez-Buylla, (1988). Glucose concentrations was measured in the Accu-Chek Sensor glucometer (Roche, Mannheim, Germany). The blood was collected at: t = -10 min -5 min (before the injections in the ICS), and t = 1 min, 5 min, 10 min, 20 min and 40 min after, which is considered as t = 0 min). After collecting the last blood sample the rats were sacrificed under anesthesia and the site of catheters tip was checked. The chemical substances used are the following:

-Sodium Pentobarbital (Pfizer) (3 mg / 100 g) and (1.8 mg / 100 mL saline) (Álvarez-Buylla and Álvarez-Buylla, 1988).

-Buprenorphine (Schering Plow, Temgesic, Mexico, 0.005 mg / 100 g i.m.) (Cowan et al., 1977).

-Saline solution (Pisa) at 0.9% (100 μL) (Yarkov et al., 2001; Lemus et al., 2008; Lemus et al., 2011).

-Insulin Lispro (Sigma) (15 mUI / rat in 100 μL of saline) (Ribeiro et al., 2013).

For the statistical analysis, the mean and standard error of the values ​​obtained from the dependent variables in each group (determination of glucose concentrations) were determined. Student's t-test was used, paired t-test to compare the averages of the dependent variables, before and after the application of the substances in the SCA, and two-sample t-test when the glucose levels were compared between both groups (insulin vs saline). The confidence interval was set at 95%, with a level of significance p <0.05.

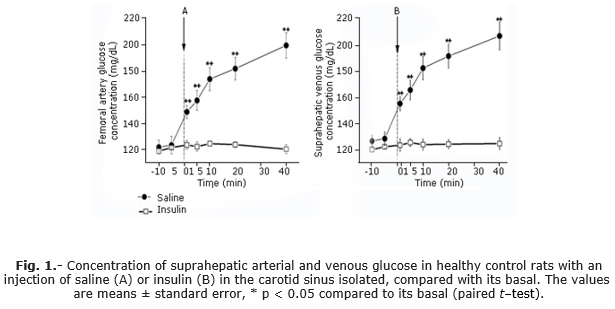

In the control group, saline infusion in ICS did not produce significant increases in the FA glucose concentration or SH venous glycaemia (Figure 1A) compared to their respective basal levels. In the experimental group, the infusion of insulin in the ICS produced significant increases in both, arterial and suprahepatic venous glycaemia compared with their respective basal levels (Figure 1B). The comparison between the mean concentration of FA and the SH vein glycemias was significant (p <0.001). When control and experimental arterial blood glucose levels groups were compared, a significant difference was observed from min 1 to min 40 after ICS insulin injection (Figure 2A). Similarly, the increase in SH venous glycaemia after insulin infusion in ICS was significant compared to SH venous glycaemia after saline in ICS (Figure 2B). No significant changes were observed between the SH vein and the FA (calculated as the suprahepatic blood glucose minus the blood glucose of the femoral artery), both, in control rats with saline in the ICS or in the experimental group with insulin in the ICS with respect to its baseline, nor with respect to the comparison between both groups with their respective times (Figure 3). However, the comparison of total differences between the two groups was significant (p = 0.005) (Figure 3), which means that insulin increased the glycemia in the SH vein and decreased blood glucose levels.




These results suggest that the increases in the glucose levels found in the SH vein and in FA are due to CBs insulin stimulation. The participation of CBs in the metabolic functions initiated by insulin is already reported (Prabhakhar, and Joyner, 2015, Conde et al., 2018). In this work CB stimulation by insulin induces hyperglycemia, contrary to the classic insulin hypoglycemic effect. The activation of CB by hypercaloric diet induces hyperinsulinemia and arterial hypertension (components of the metabolic syndrome) (Ribeiro et al., 2013). Intravenous insulin on CB augments ventilation (Prabhakar and Joyner, 2015). CB stimulation activates the sympathoadrenal pathway with hepatic glycogenolysis (Álvarez-Buylla et al., 1997). Therefore, hyperinsulinemia detected by CB induces hyperglycemic reflex (paradoxical effect) establishing a vicious circuit that leads to a greater hyperinsulinemia due to sympathoadrenal activity (Álvarez-Buylla et al., 1997; Thompson et al., 2016).




Insulin in ICS stimulates the carotid body and triggers an increase in glucose output by the liver (SH glycemia) that results in FA hyperglycemia (Figure 8). Saline into ICS had no effect on blood glucose levels.




In order to determine whether the hyperglycaemic effect of insulin is due to a direct stimulation on CC or to the central action of this hormone, with participation of sympathetic-adrenal system counterregulation mechanism of (Thompson et al, 2016), glycemia could be quantified venous suprahepatic, arterial glucose and adrenaline levels in the blood rats in order to determine the sympathetic-adrenal effect in the hyperglycemic response, after injecting insulin into the CC or into the nucleus of the solitary tract of the brain stem, place of confluence of the afferents of the carotid sinus nerve.




This work was supported by a research project of the National Council of Science and Technology (No. 17704), and Ramón Álvarez de Aldana Fund.




Alvarez-Buylla, R. (1951) Actividad quimiorreceptora del glomus carotídeo.

Archivos del Instituto de Cardiología 21:724-739

Alvarez-Buylla, R., de Alvarez-Buylla, E.R. (1988) Carotid sinus receptors participate in glucose homeostasis. Respiratory Physiology 72:347-359

Alvarez-Buylla, R., Roces de Alvarez-Buylla E. (1994) Changes in blood glucose concentration in the carotid body-sinus modify brain glucose retention.

Brain Research 654:167-170

Alvarez-Buylla, R., de Alvarez-Buylla, E., Mendoza, H., Montero, S., Alvarez-Buylla, A. (1997) Pituitary and adrenals are required for hyperglycemic reflex initiated by stimulation of CBR with cyanide. American Journal Physiology 272:R392-R399.

Bin-Jaliah, I., Maskell, P.D., Kumar, P. (2004) Indirect sensing of insulin-induced hypoglycaemia by the carotid body in the rat. Journal Physiology 556:255 -266.

Cao, W.H., Morrison, S.F. (2001) Differential chemoreceptor reflex responses of adrenal preganglionic neurons . American Journal of Physiology, Regulatory, Integrative and Comparative Physiology 281:R1825-R1832.

Conde, S.V., Sacramento, J.F ., Guarino, M.P ..(2018) Carotid body: a metabolic sensor implicated in insulin resistance. Physiological Genomics 50:208-214.

Cowan A., Lewis J.W., MacFarlane I.R. (1977) Agonist and antagonist properties of buprenorphine, a new antinociceptive agent. Br. J. Pharmacol., 60, pp. 537-545.

Eyzaguirre C, Zapata P. (1984) Perspectives in carotid body research.Journal of Applied Physiology: respiratory, environmental and exercise physiology. 57:931-57.

Finley, J.C., Katz, D.M. (1992) The central organization of carotid body afferent projections to the brainstem of the rat. Brain Research 572: 108-116.

Gonzalez, C.,Almaraz, L.,Obeso, A., Rigual, R. (1994) Carotid body chemoreceptors: from natural stimuli to sensory discharges . Physiological Reviews 74:829- 898.

Koyama, Y., Coker, R., Stone, E., Lacy, D., Jabbour, K., Williams., P, et al. (2000). Evidence that carotid bodies play an important role in glucoregulation in vivo. Diabetes 49:1434-1442.

Lemus, M., Montero, S., Cadenas, J.L., Lara, J.J., Tejeda, H.R., Álvarez-Buylla, R., de Álvarez-Buylla, E. (2008) GABAB receptors activation in the NTS blocks the glycemic responses induced by carotid body receptor stimulation. Autonomic Neuroscience: Basic & Clinical 141:73-82.

Lemus, M., Montero, S., Leal, C.A., Portilla de Buen, E., Luquín, S., Garcia-Estrada, J., Melnikov,V, de Álvarez-Buylla, E. (2011) Nitric Oxide infused in the solitary tract nucleus blocks brain glucose retention induced by carotid chemoreceptor stimulation. Nitric Oxide 25:387-395.

Marshall, J.M. (1994) Peripheral chemoreceptors and cardiovascular regulation. Physiological Reviews 74:543-594.

McCrimmon, R. J., Frier, B.M. (1994) Hypoglycaemia: the most feared complication of insulin therapy. Diabetes Metabolism 20:503-512.

Pardal, R., López-Barneo, J. (2002) Low glucose-sensing cells in the carotid bodyNature Neuroscience 5:197-198.

Pardal, R., Ortega-Sáenz, P., Durán, R., López-Barneo, J. (2007) Glia-like stem cell sustain physiologic neurogenesis in adult mammalian carotid body. Cell 131:364-377.

Pareda, S., Eckstein, J.Abboud, F. (1962) Cardiovascular responses to insulin in the absence of hypoglycemia. American Journal of Physiology. 202:249-252.

Prabhakhar, N. R., Joyner, M. J. (2015). Tasting arterial blood: what do the carotid chemoreceptors sense? Frontiers in Physiology 5:524.

Ribeiro, M., Sacramento, J., González, C., Guarino, M., Monteiro, E., Conde, S. (2013) Carotid body denervation prevents the development of insulin resistance and hypertension induced by hypercaloric diets. Diabetes 62:2905-2916.

Rowe, J. W., Young, J. B., Minaker, K. L., Stevens, A. L., Pallotta, J., Landsberg, L. (1981) Effect of insulin and glucose infusions on sympathetic nervous system activity in normal man. Diabetes 30:219-225.

Thompson, E.L., Ray, C.J., Holmes, A.P., Pye, R., Wyatt C.N., Coney, A. M. and Kumar, P. (2016) Adrenaline release evokes hyperpnoea and an increase in ventilatory CO2 sensitivity during hypoglycaemia: a role for the carotid body. Journal of Physiology 594:4439-4452.

Yarkov, A., Montero, S., Lemus, M., de Álvarez-Buylla, E.R., Álvarez-Buylla, R. (2001) Arginine-Vasopressin in nucleus of the tractussolitarius induces hyperglycemia and brain glucose retention. Brain Research 902:212-222.
